How To Connect A Satellite

A Satellite is a compute node you host yourself that executes models and serves inference requests. Before you can deploy, at least one Satellite must be connected to the Orbit. This guide walks through registering the Satellite in Luml and launching it with Docker on a single host. To run the Satellite in a Kubernetes or OpenShift cluster instead, register it the same way and continue with How To Run A Satellite On Kubernetes.

Register the Satellite in Luml​

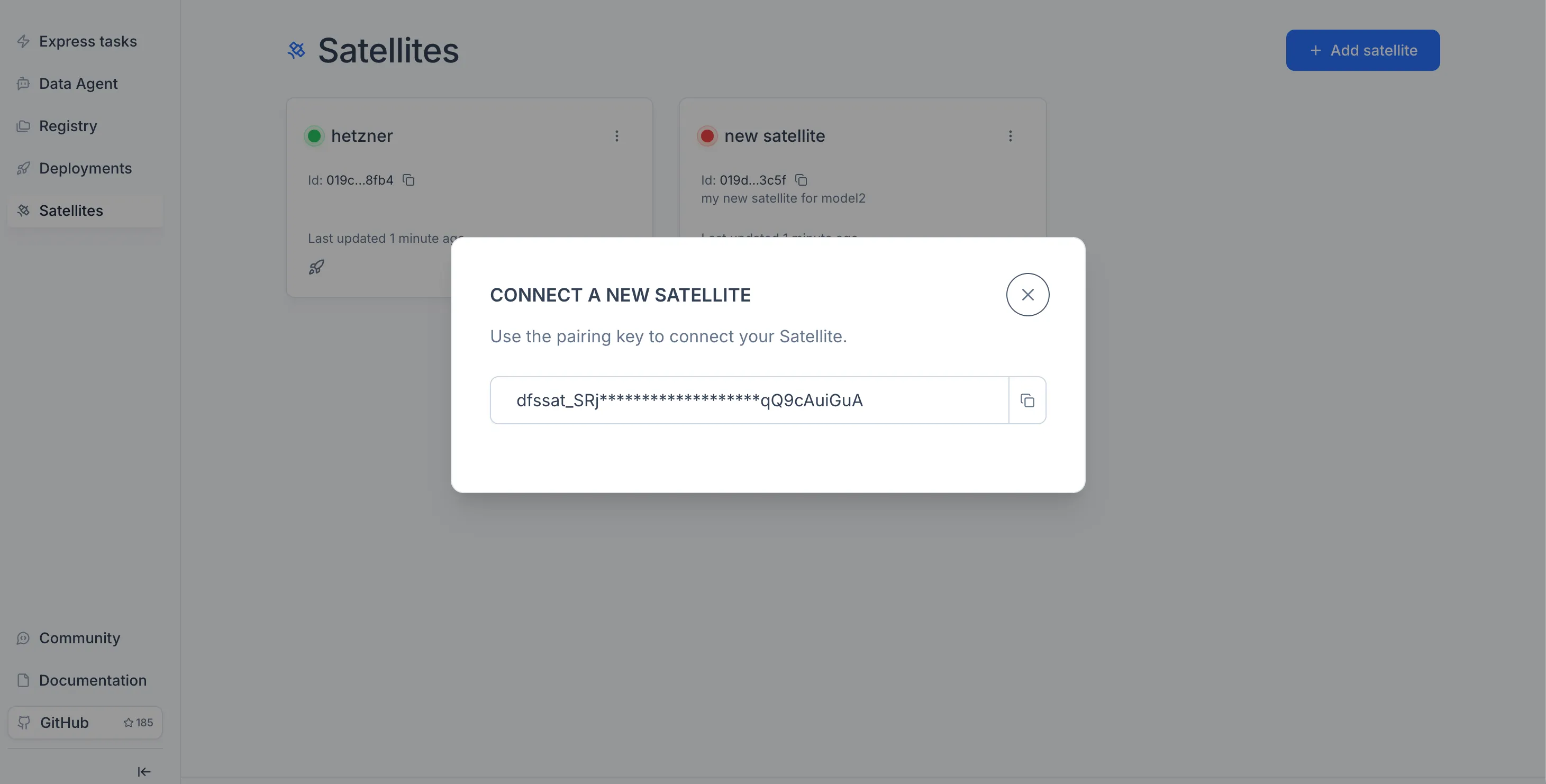

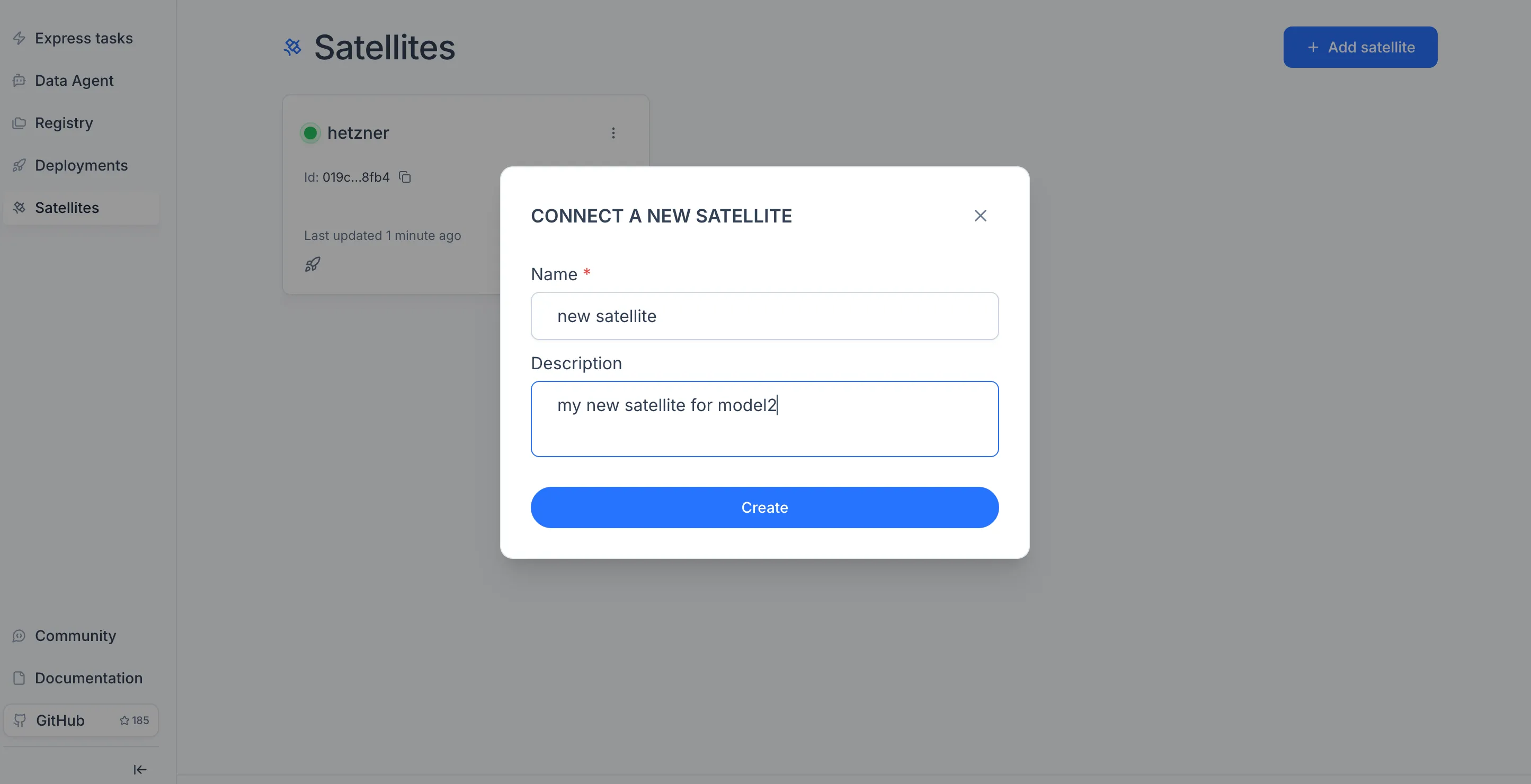

Open the Satellites module in the sidebar and click Create Satellite. Give it a name, fill in the required fields, and copy the Token the platform generates — you will need it to pair the Satellite with Luml.

The dialog does not ask whether the Satellite runs on Docker or Kubernetes. The Satellite reports its kind when it pairs, and Luml shows it on the Satellite card.

Launch the Satellite with Docker​

The Docker Satellite runs every model deployment as a container on the same Docker daemon. It ships as public Docker images on GitHub Container Registry:

ImagePurpose
ghcr.io/luml-ai/luml-satellite-agentThe Satellite itself: pairs with Luml, runs deployments, serves inference and the monitoring dashboard
ghcr.io/luml-ai/luml-model-serverThe image every model container starts from

The stack below starts five services next to each other:

ServiceRole
agentThe Satellite. Runs as an unprivileged user and publishes no port of its own.
reverse-proxyCaddy in front of the agent. It is the only service with host ports.
docker-socket-proxyThe only service that mounts the Docker socket. The agent talks to Docker through it.
greptimedbStores inference events and monitoring results. It sits on an internal network and is protected by a password.
otel-collectorReceives traces from the agent and the model containers and writes them to GreptimeDB.

1. Create a working directory on the host machine:

mkdir luml-satellite && cd luml-satellite

2. Create docker-compose.yml with the following content:

name: satellite

networks:
satellite-network:
driver: bridge
labels:
df.model-access: "true"
store-network:
driver: bridge
internal: true
docker-control:
driver: bridge
internal: true

volumes:
greptimedb-data:
caddy-data:
caddy-config:

services:
agent:
image: ghcr.io/luml-ai/luml-satellite-agent:latest
networks:
satellite-network:
aliases:
- satellite-agent
store-network:
docker-control:
environment:
DOCKER_HOST: tcp://docker-socket-proxy:2375
SATELLITE_TOKEN: ${SATELLITE_TOKEN:?Set SATELLITE_TOKEN in .env}
PLATFORM_URL: ${PLATFORM_URL:-https://api.luml.ai}
BASE_URL: ${BASE_URL:-http://localhost}
MODEL_IMAGE: ${MODEL_IMAGE:-ghcr.io/luml-ai/luml-model-server:latest}
POLL_INTERVAL_SEC: ${POLL_INTERVAL_SEC:-2}
OTEL_EXPORTER_OTLP_ENDPOINT: http://otel-collector:4317
MONITORING_ENABLED: "true"
MONITORING_FRAME_ANCESTORS: ${MONITORING_FRAME_ANCESTORS:-https://app.luml.ai}
GREPTIMEDB_HOST: greptimedb
GREPTIMEDB_USERNAME: ${GREPTIMEDB_USERNAME:?Set GREPTIMEDB_USERNAME in .env}
GREPTIMEDB_PASSWORD: ${GREPTIMEDB_PASSWORD:?Set GREPTIMEDB_PASSWORD in .env}
user: "10001:10001"
cap_drop:
- ALL
security_opt:
- no-new-privileges:true
extra_hosts:
- "host.docker.internal:host-gateway"
depends_on:
- docker-socket-proxy
- model-server
- otel-collector
restart: unless-stopped

reverse-proxy:
image: caddy:2.10.2-alpine
networks:
- satellite-network
volumes:
- ./Caddyfile:/etc/caddy/Caddyfile:ro
- caddy-data:/data
- caddy-config:/config
environment:
SATELLITE_SITE: ${SATELLITE_DOMAIN:-:80}
ports:
- "${PROXY_BIND:-127.0.0.1}:80:80"
- "${PROXY_BIND:-127.0.0.1}:443:443"
depends_on:
- agent
restart: unless-stopped

docker-socket-proxy:
image: tecnativa/docker-socket-proxy:v0.5.0
networks:
- docker-control
volumes:
- /var/run/docker.sock:/var/run/docker.sock:ro
environment:
CONTAINERS: "1"
IMAGES: "1"
NETWORKS: "1"
VOLUMES: "1"
POST: "1"
PING: "1"
VERSION: "1"
EVENTS: "0"
restart: unless-stopped

model-server:
image: ghcr.io/luml-ai/luml-model-server:latest
platform: linux/amd64
command: ["true"]
restart: "no"

greptimedb:
image: greptime/greptimedb:v0.13.1
command:
- standalone
- start
- --http-addr=0.0.0.0:4000
- --rpc-addr=0.0.0.0:4001
- "--user-provider=static_user_provider:cmd:${GREPTIMEDB_USERNAME:?Set GREPTIMEDB_USERNAME in .env}=${GREPTIMEDB_PASSWORD:?Set GREPTIMEDB_PASSWORD in .env}"
networks:
- store-network
volumes:
- greptimedb-data:/tmp/greptimedb
restart: unless-stopped

otel-collector:
image: otel/opentelemetry-collector-contrib:0.127.0
command: ["--config=/etc/otel/config.yaml"]
networks:
- satellite-network
- store-network
environment:
GREPTIMEDB_USERNAME: ${GREPTIMEDB_USERNAME:?Set GREPTIMEDB_USERNAME in .env}
GREPTIMEDB_PASSWORD: ${GREPTIMEDB_PASSWORD:?Set GREPTIMEDB_PASSWORD in .env}
volumes:
- ./otel-collector-config.yaml:/etc/otel/config.yaml:ro
depends_on:
- greptimedb
restart: unless-stopped

The top-level name: satellite pins the Compose project name, so the networks and containers are prefixed with satellite_ regardless of what the working directory is called. The model-server service only pulls the model image ahead of time and exits.

The three networks keep the services apart:

  • satellite-network carries the label df.model-access: "true". The Satellite connects model containers only to its networks with this label, so models can reach the collector by name.
  • store-network is internal. Only the agent, the collector and GreptimeDB join it, so model containers cannot reach the store.
  • docker-control is internal and unlabelled. Only the agent and the Docker socket proxy join it, so model containers never reach the Docker API.

The socket proxy allows the Docker API sections the Satellite needs: containers, images, networks, volumes, ping and version. It denies the rest, including exec, builds, secrets and swarm. The agent can still create containers, so treat it as trusted with the host's Docker.

3. Create Caddyfile in the same directory:

{
servers {
protocols h1 h2
}
}

{$SATELLITE_SITE} {
reverse_proxy agent:8000 {
flush_interval -1
}
}

flush_interval -1 passes streamed inference responses through without buffering.

4. Create otel-collector-config.yaml in the same directory:

receivers:
otlp:
protocols:
grpc:
endpoint: "0.0.0.0:4317"

extensions:
basicauth/client:
client_auth:
username: ${env:GREPTIMEDB_USERNAME}
password: ${env:GREPTIMEDB_PASSWORD}

exporters:
otlphttp/traces:
endpoint: "http://greptimedb:4000/v1/otlp"
tls:
insecure: true
auth:
authenticator: basicauth/client
headers:
x-greptime-db-name: public
x-greptime-trace-table-name: otel_traces

otlphttp/events:
endpoint: "http://greptimedb:4000/v1/otlp"
tls:
insecure: true
auth:
authenticator: basicauth/client
headers:
x-greptime-db-name: public
x-greptime-trace-table-name: inference_events

processors:
filter/traces_main:
error_mode: ignore
traces:
span:
- 'resource.attributes["service.name"] == "satellite-agent.events"'
filter/traces_events:
error_mode: ignore
traces:
span:
- 'resource.attributes["service.name"] != "satellite-agent.events"'

service:
extensions: [basicauth/client]
pipelines:
traces/main:
receivers: [otlp]
processors: [filter/traces_main]
exporters: [otlphttp/traces]
traces/events:
receivers: [otlp]
processors: [filter/traces_events]
exporters: [otlphttp/events]

5. Create .env in the same directory. Paste the token from the previous step into SATELLITE_TOKEN and generate a password for GreptimeDB, for example with openssl rand -hex 32:

# Required: token issued by the platform
SATELLITE_TOKEN=replace-with-your-token

# Required: credentials of the local monitoring store, shared by the agent and the collector
GREPTIMEDB_USERNAME=monitoring
GREPTIMEDB_PASSWORD=replace-with-a-generated-password

# Public base URL of the Satellite (used to report inference endpoints)
BASE_URL=http://localhost
VariableDefaultMeaning
SATELLITE_TOKEN—Token issued by Luml. Required.
GREPTIMEDB_USERNAME—User of the local GreptimeDB. Required. Do not use ,, = or : in it.
GREPTIMEDB_PASSWORD—Password of the local GreptimeDB. Required. Use a generated hexadecimal value.
BASE_URLhttp://localhostAddress other services use to reach the Satellite. Inference endpoints and the monitoring dashboard are published under it.
SATELLITE_DOMAIN—DNS name of the host. When set, the proxy serves HTTPS with a Let's Encrypt certificate.
PROXY_BIND127.0.0.1Host interface the proxy listens on. Set 0.0.0.0 to accept connections from other machines.
PLATFORM_URLhttps://api.luml.aiLuml API the Satellite pairs with.
MODEL_IMAGEghcr.io/luml-ai/luml-model-server:latestImage model containers start from.
MONITORING_FRAME_ANCESTORShttps://app.luml.aiOrigins allowed to embed the monitoring dashboard, separated by spaces.
POLL_INTERVAL_SEC2How often the Satellite polls Luml for tasks, in seconds.

6. Launch the Satellite:

docker compose up -d

Compose pulls the images and starts the containers in the background. The Satellite connects to Luml using the token, registers its capabilities, and begins polling for tasks. To confirm it is online, return to the Satellites module in Luml — the Satellite's status should switch to Connected. On the host, curl http://localhost/livez answers through the proxy.

On the first deployment the Satellite creates its own Docker network, luml-satellite-<satellite id>, and starts model containers in it.

To check the Satellite's logs or stop it later:

docker compose logs -f agent   # follow the Satellite's logs
docker compose down # stop and remove the containers

Undeploy models through Luml before you run docker compose down. Model containers are started by the Satellite, not by Compose, and keep running after the stack stops.

Reach the Satellite from other machines​

By default the proxy serves plain HTTP on 127.0.0.1:80, so the Satellite answers only on the host itself. For remote access with automatic HTTPS, the host needs a DNS name that resolves to it and open ports 80 and 443. Set three values in .env and run docker compose up -d:

SATELLITE_DOMAIN=sat.example.com
PROXY_BIND=0.0.0.0
BASE_URL=https://sat.example.com

Caddy obtains a certificate for that name, renews it, redirects port 80 to HTTPS and keeps the certificate in the caddy-data volume. The Satellite reports BASE_URL to Luml when it pairs on start-up. Check the setup with curl https://sat.example.com/livez.

To put a TLS proxy of your own in front of the Satellite instead, leave SATELLITE_DOMAIN and PROXY_BIND unset, point your proxy at http://127.0.0.1:80 and set BASE_URL to your proxy's public URL. Do not publish the agent's port or the Docker socket proxy.

Update the Satellite​

The images are tagged latest, so an update is a pull and a restart:

docker compose pull
docker compose up -d

To stay on a fixed release, replace latest with a version tag from the package pages, for example ghcr.io/luml-ai/luml-satellite-agent:v0.4.0 together with ghcr.io/luml-ai/luml-model-server:v0.4.0.

Starting with v0.4.0, the model server rejects request bodies larger than 16 MiB with 413 Request body too large.

Upgrade from a Satellite older than v0.4.0​

v0.4.0 changes the stack, not only the images. A pull alone keeps the old Compose file: the new agent starts, but model containers no longer join the unlabelled satellite-network and their traces stop reaching the collector. Replace the configuration files as well:

  1. Replace docker-compose.yml and otel-collector-config.yaml with the versions above and create the Caddyfile.

  2. Add GREPTIMEDB_USERNAME and GREPTIMEDB_PASSWORD to .env. The existing GreptimeDB data stays in its volume.

  3. If other machines reached the Satellite on port 80 before, the new proxy serves only 127.0.0.1 by default. Set SATELLITE_DOMAIN, PROXY_BIND and BASE_URL as described in Reach the Satellite from other machines. To keep plain HTTP on all interfaces, set only PROXY_BIND=0.0.0.0.

  4. Detach running model containers from the old stack network. Compose recreates satellite-network to add its label and cannot remove a network that model containers are still attached to. Every Satellite release labels its model containers with df.deployment_id, so the filter also finds containers started by v0.2.x:

    for c in $(docker ps -q --filter label=df.deployment_id --filter network=satellite_satellite-network); do
    docker network disconnect satellite_satellite-network "$c"
    done

    If the stack runs under another project name, replace satellite_ with that name and an underscore.

  5. Restart the stack on the new configuration:

    docker compose pull
    docker compose down
    docker compose up -d

Model containers started by v0.3.x keep serving from the Satellite's own network during these steps. Containers started by v0.2.x run in the stack network itself, so they are left without a network after step 4 and stop serving until the new Satellite starts. On its first start the new Satellite relaunches each model container once and connects it only to the networks labelled df.model-access. Expect a short interruption of inference for each deployment.

Several Satellites on one host​

Several Satellites can share one Docker daemon. Give each Satellite its own token, its own Compose project, its own proxy port and its own BASE_URL. For example, run the second stack from its own directory with name: satellite-two and change the proxy ports:

  reverse-proxy:
ports:
- "127.0.0.1:8081:80"

Then set BASE_URL=http://localhost:8081 in that stack's .env. A Satellite manages only the containers it started and leaves containers of other Satellites alone.
